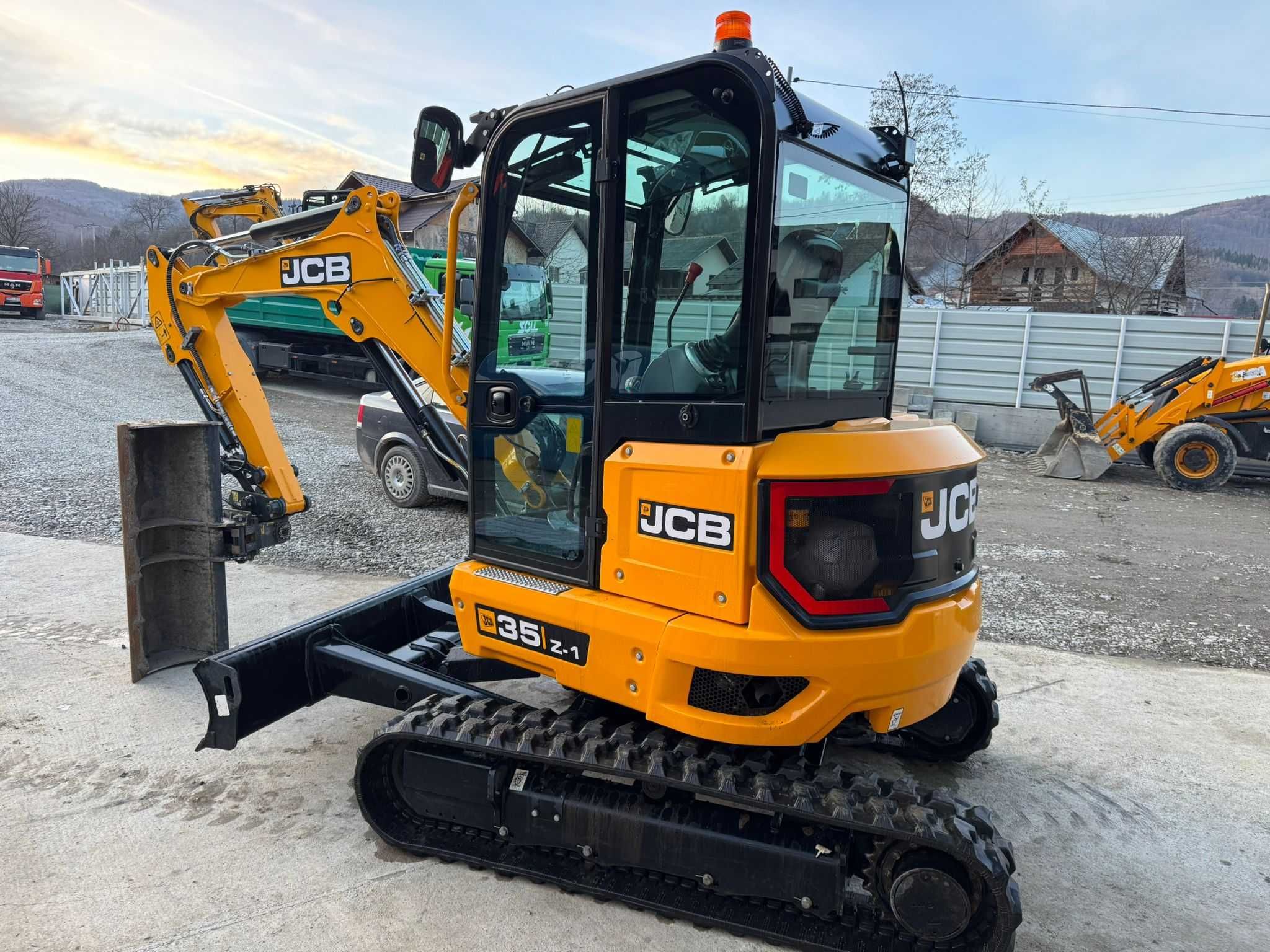

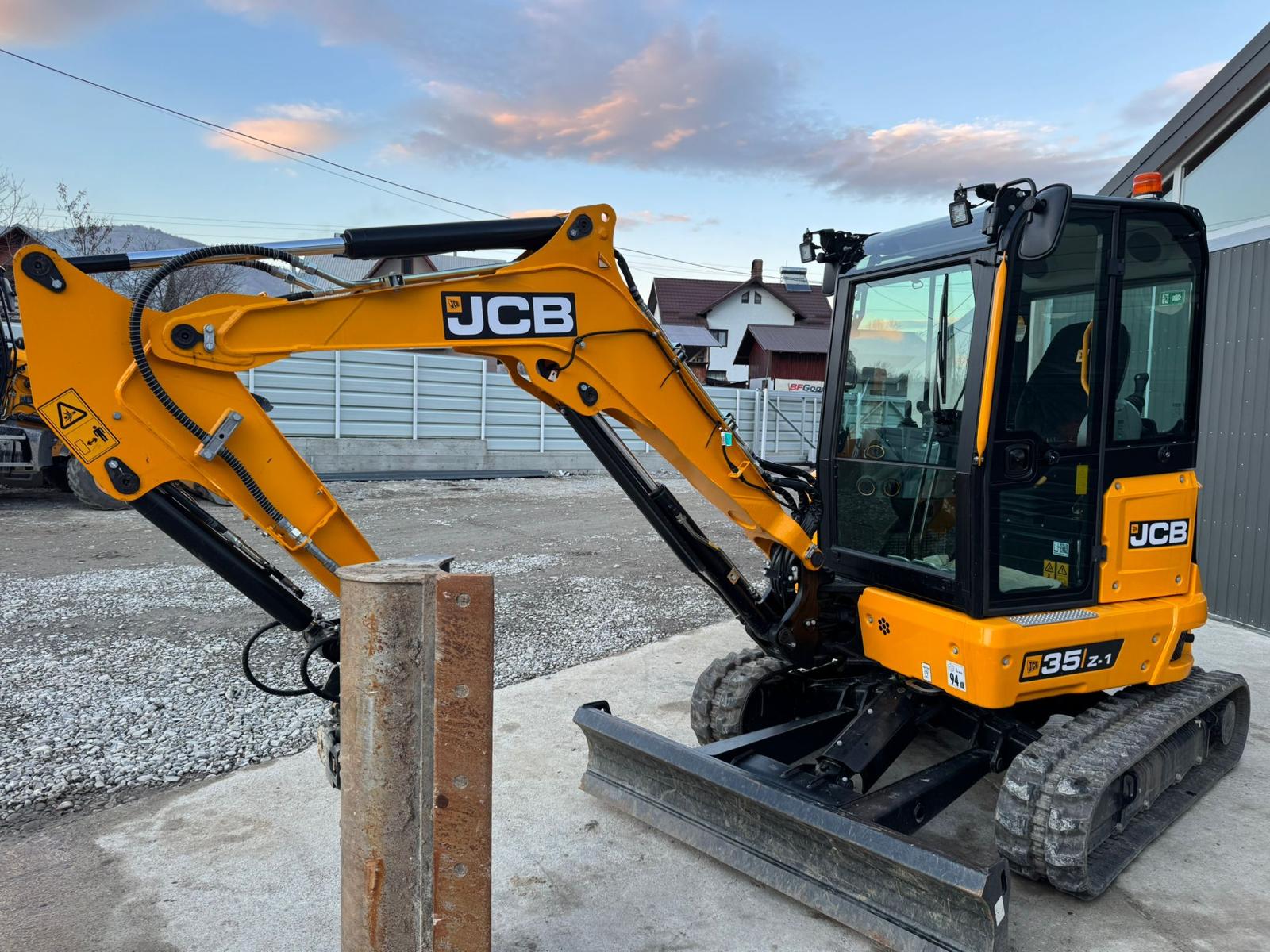

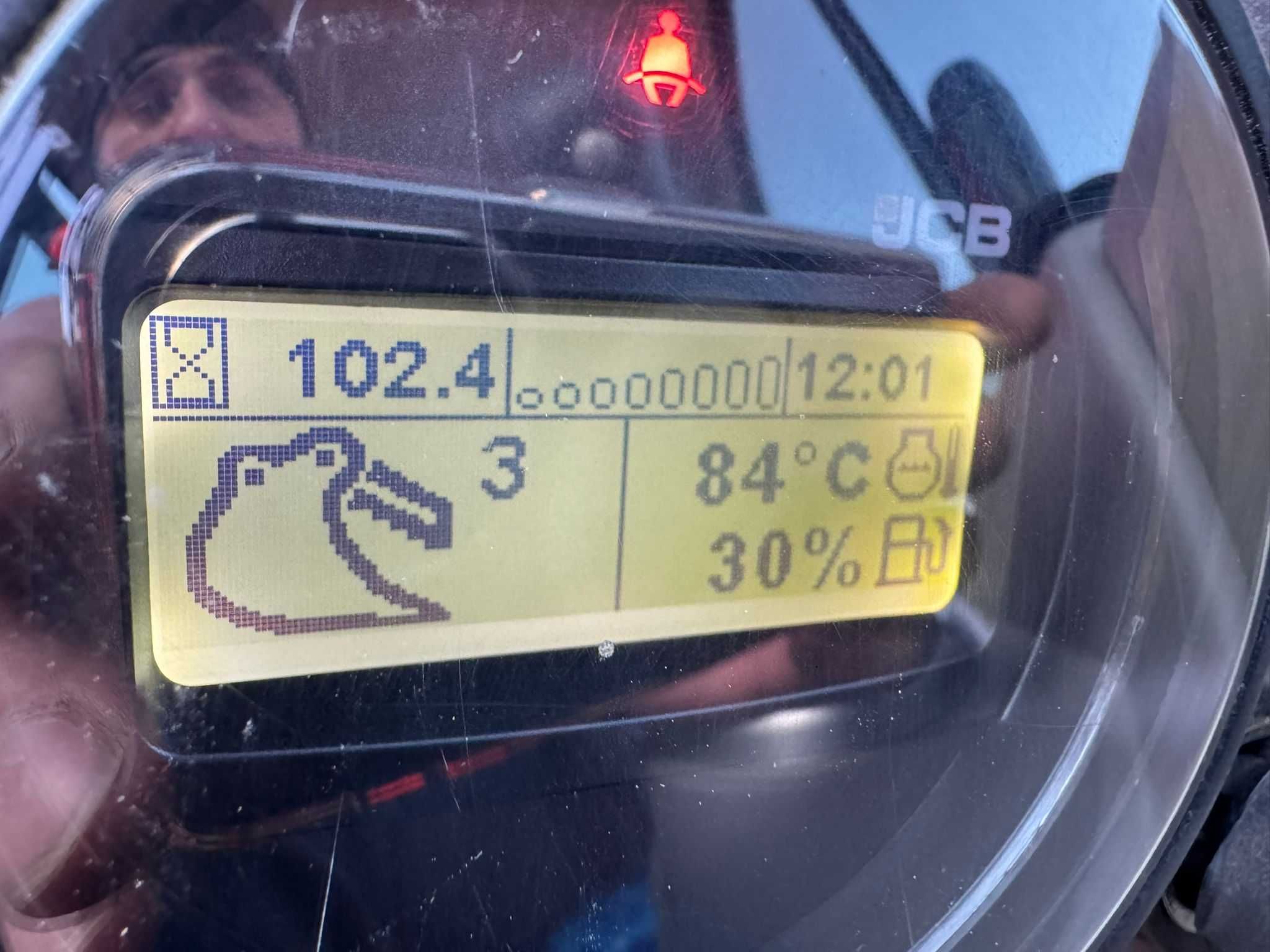

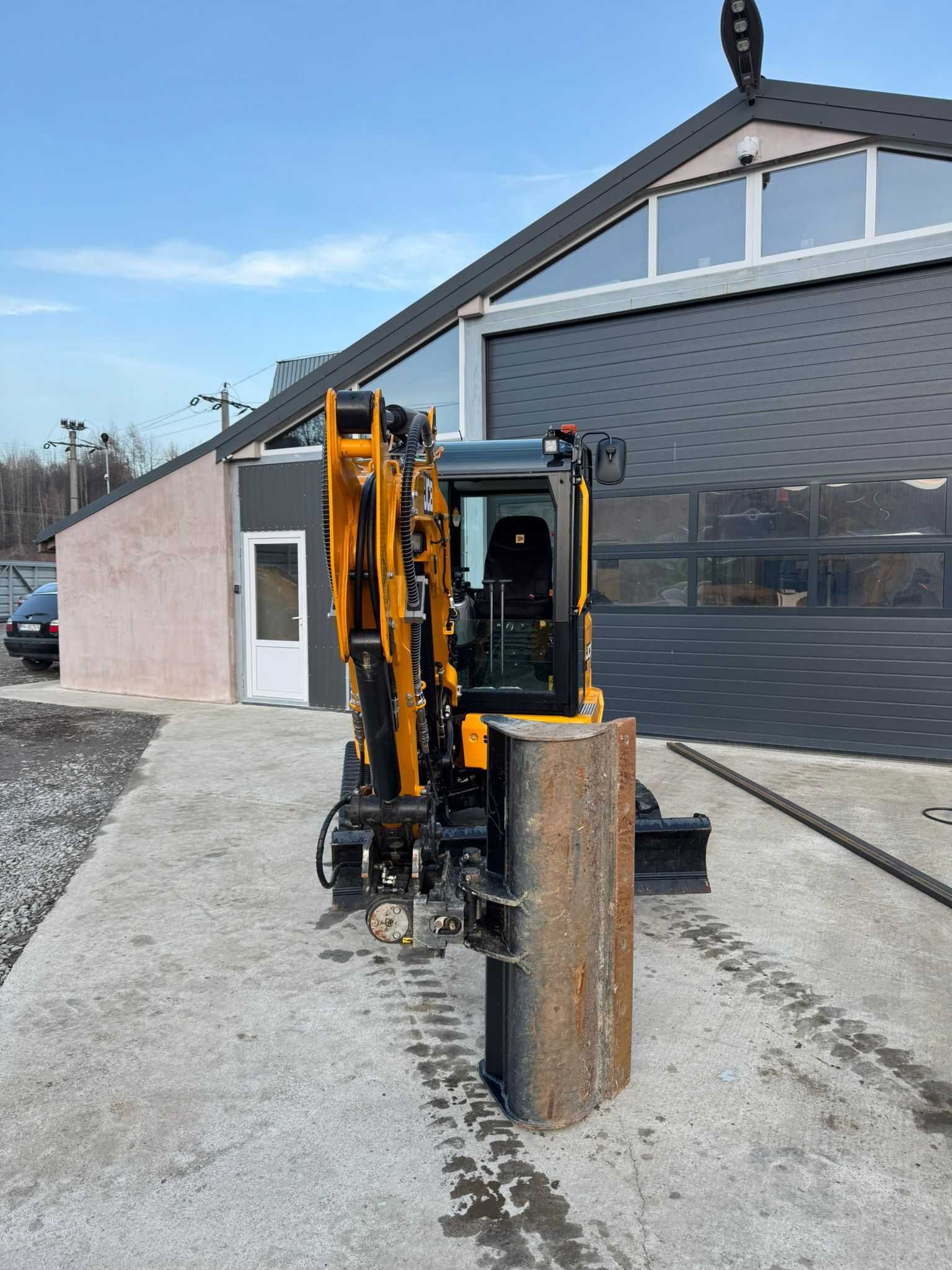

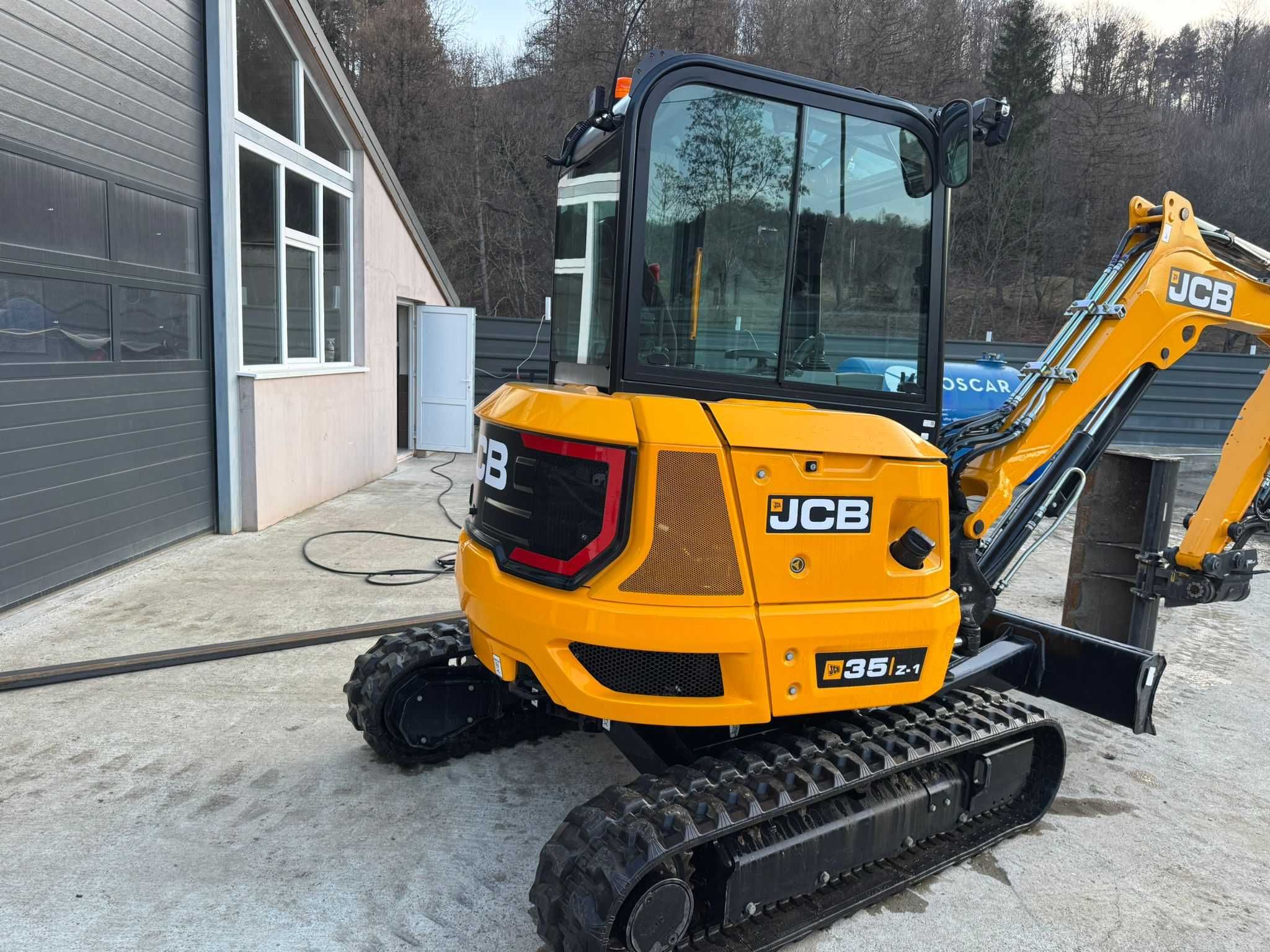

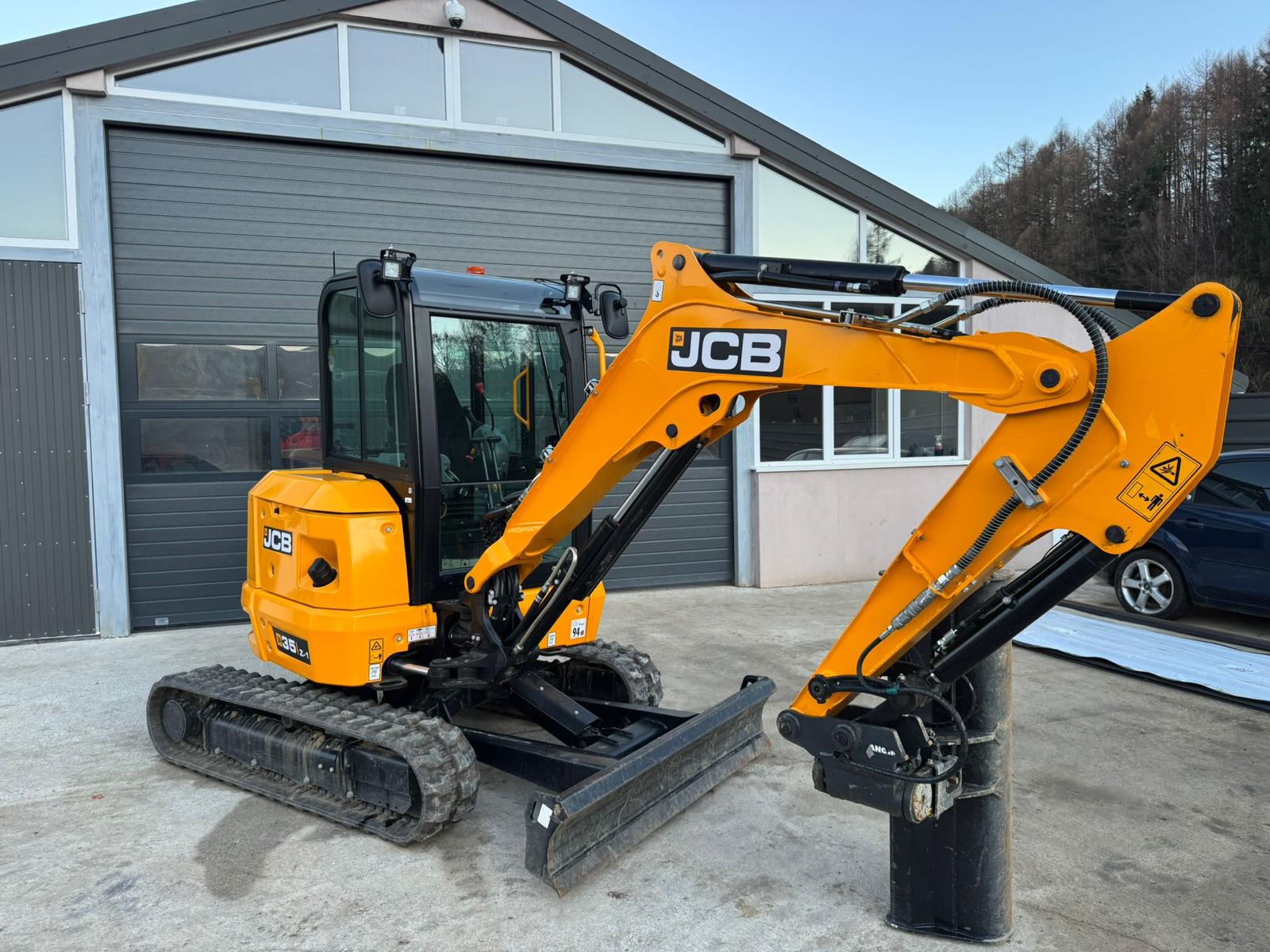

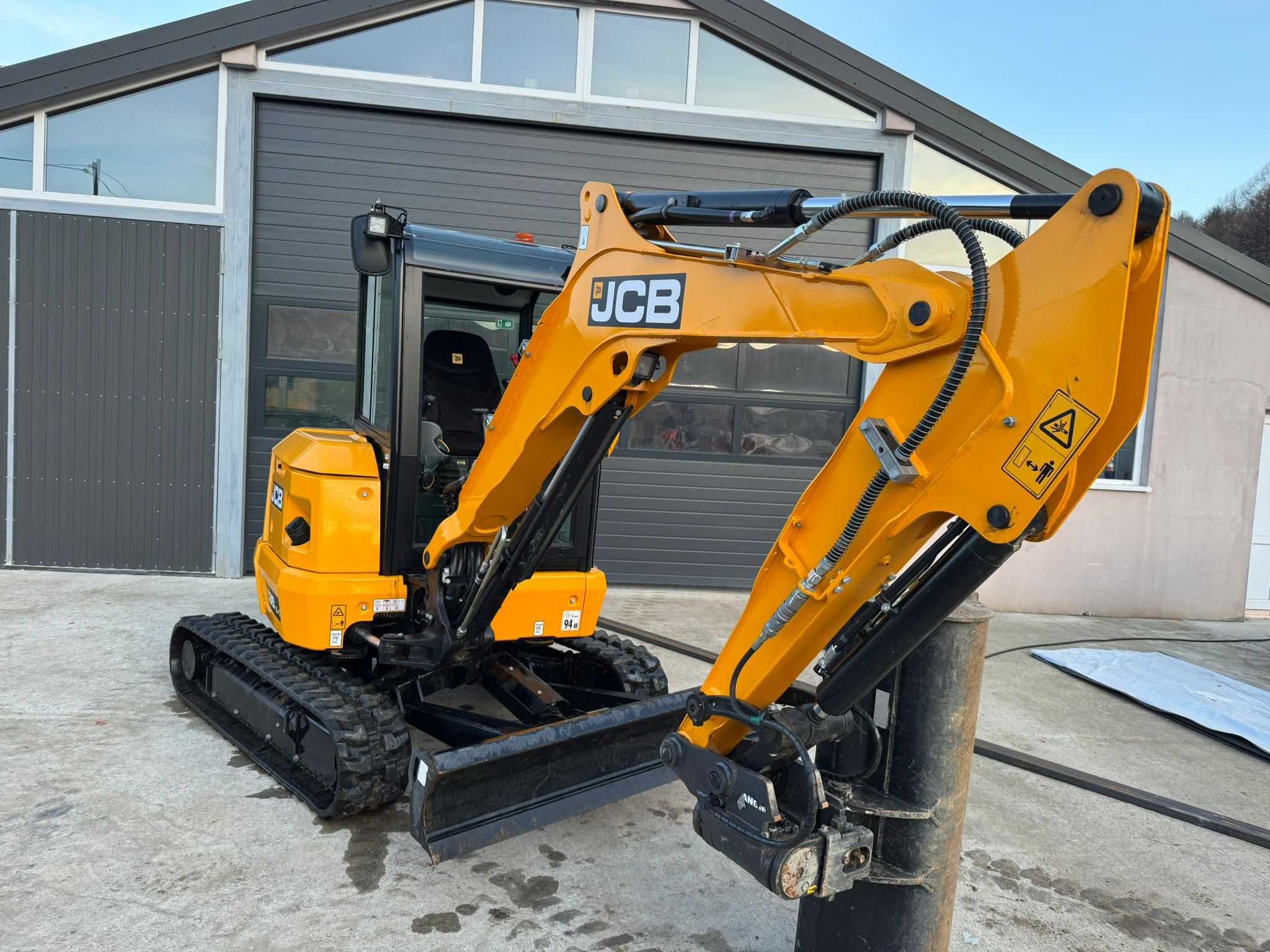

🟩 JCB 35Z-1 – 2023 | 25 HP | 110 h | Tilt-Rotate System
The JCB 35Z-1 (2023) is a premium mini excavator that delivers outstanding performance, precision, and comfort in a compact zero-tail design. With only 110 operating hours and factory warranty valid until October 2025, this unit is in like-new condition and ready for immediate work.
An original JCB Tilt-Rotate system is installed (and can also be sold separately). The excavator comes with complete accessories and standard equipment, offering top versatility for professionals in construction, landscaping, and utility operations.
Main Equipment & Features:
-

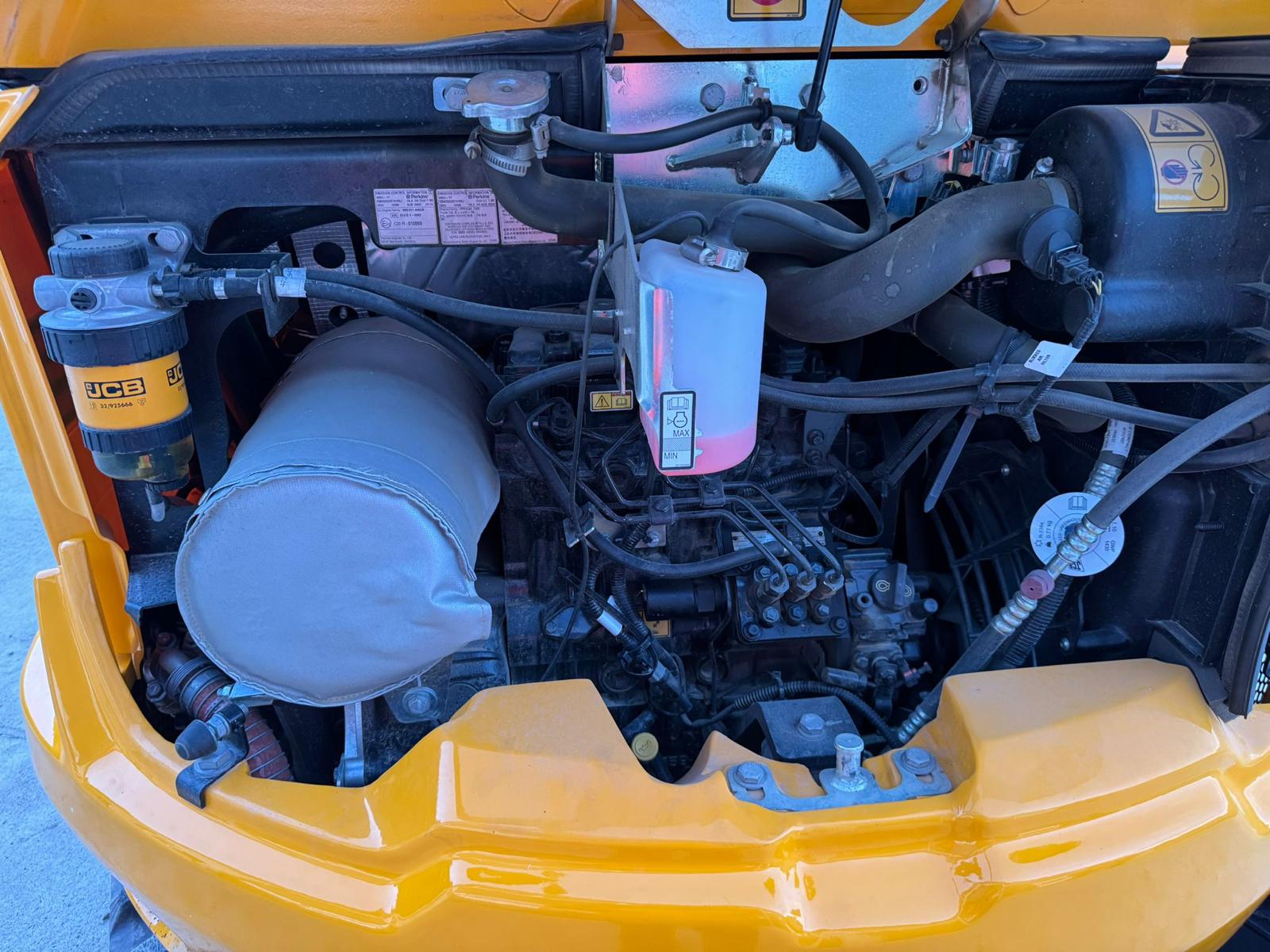

Perkins 403J-17 Stage V diesel engine – 25 HP (18.6 kW)
-
3-cylinder / 1.662 L displacement
-
Torque: 91.9 Nm @ 1,600 rpm
-
Hydrostatic servo-controlled transmission, independent left/right
-
Travel speed: 2.8 km/h (low) | 4.5 km/h (high)
-

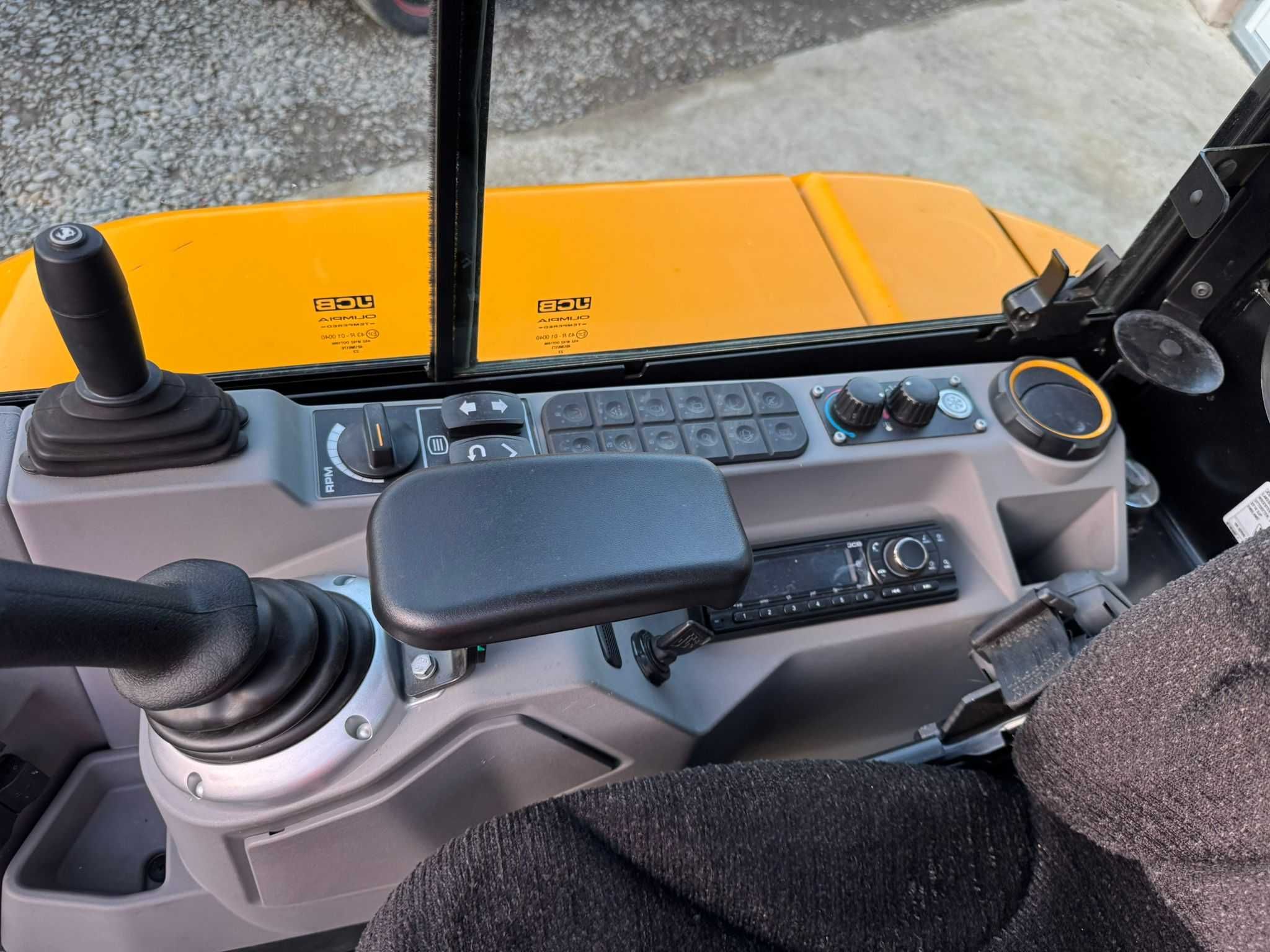

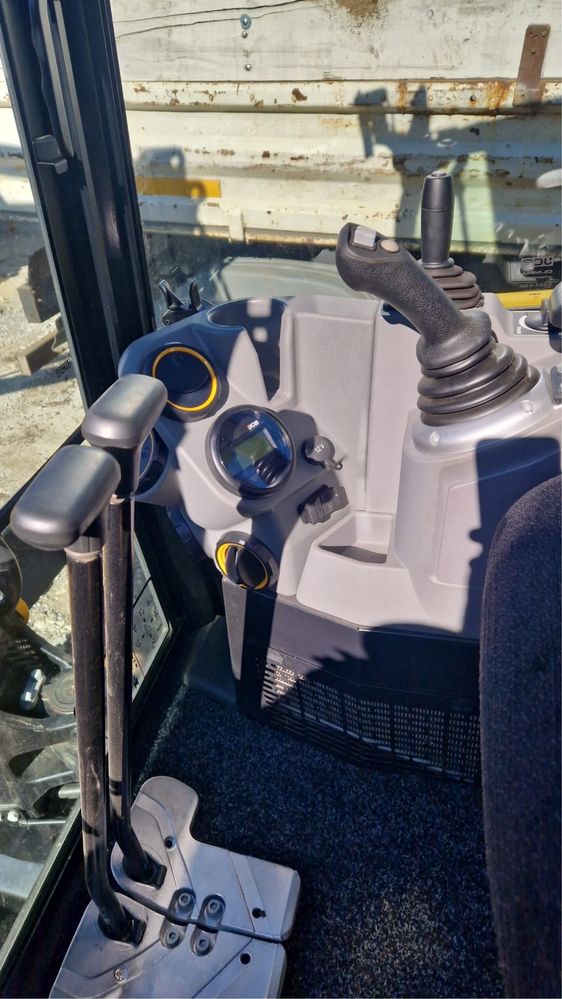

ROPS/TOPS cabin, sound-insulated with heating, ventilation, and A/C
-
Hydraulic axial-piston pump, variable flow 76 L/min
-
Auxiliary hydraulic flow: 70 L/min (for hammer, drill, etc.)
-
Hydraulic filter: 10 microns
-
Hydrostatic braking system / skid steering
-
LED work lights (on arm and cabin) + rotating beacon
-
Seat with seat belt
-
Maintenance and operation manual included
Performance & Dimensions
-
Operating weight: 3,556 kg
-
Width over tracks: 1,750 mm
-
Maximum digging depth: 3,194 mm
-
Max. reach / unloading height: 3,378 mm
-
Breakout force: 22,500 N (arm) | 32,400 N (bucket)
-
Blade width: 1,750 mm
-
Rubber tracks: 300 mm
-
Excavation arm: 2,450 mm with 1,300 mm handle
Included Attachments & Equipment
-
Excavation bucket 300 mm
-
Sloping (grading) bucket 1,200 mm
-
Quick coupler device (mechanical drive)
-
General-purpose bucket 600 mm
-

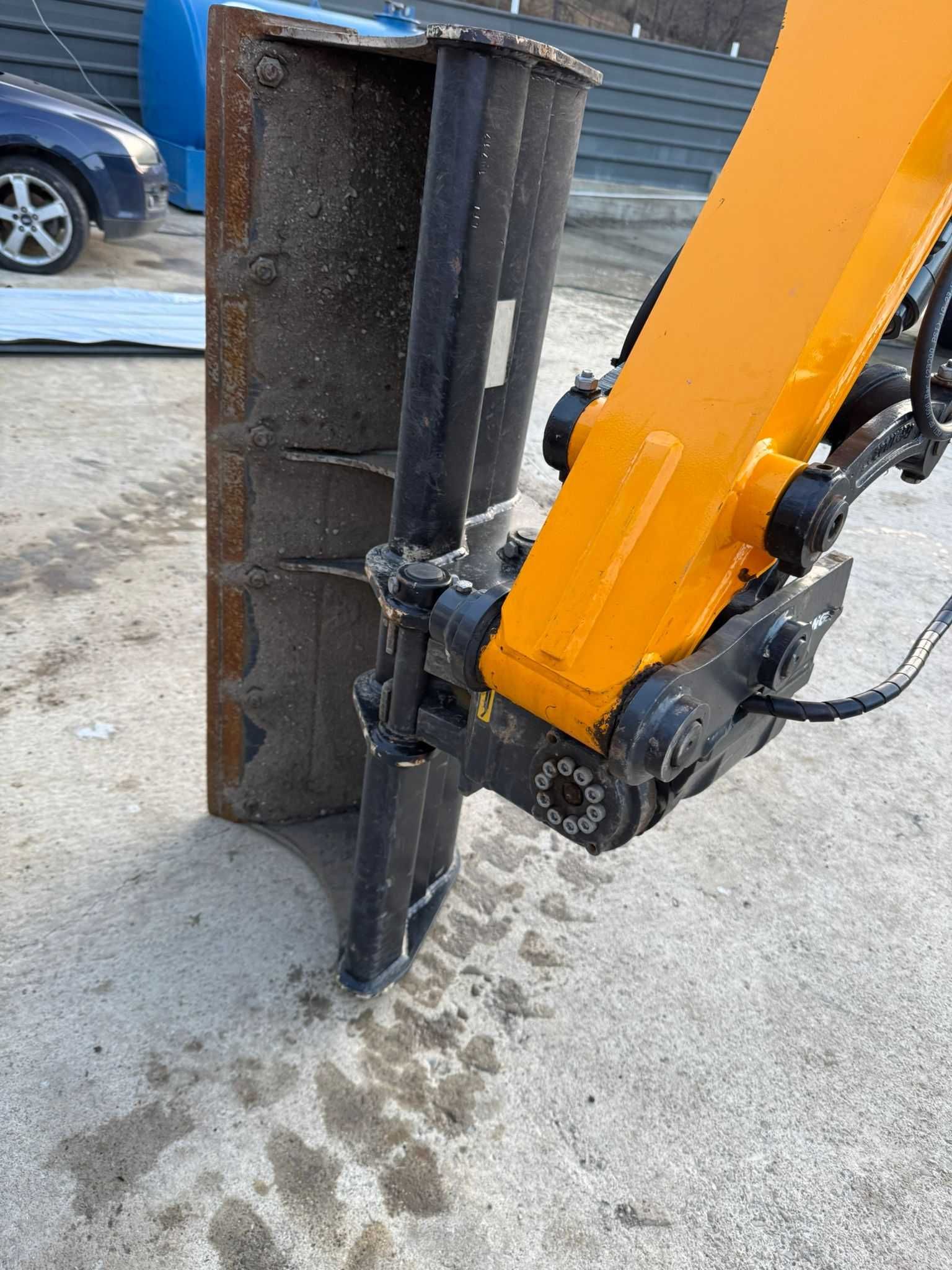

Tilt-Rotate system (original JCB)
-
Cutting bulldozer blade 1,750 mm
-
Double-way hydraulic installation (hammer/drill ready)
🟢 Summary
This JCB 35Z-1 (2023) offers zero-tail precision, strong hydraulics, and full operator comfort in a compact 1.8-ton package.
It is under manufacturer warranty until 10/2025, fully equipped, and in like-new condition.
⚙️ Technical Data
Operating weight: 3,556 kg | Width: 1,750 mm | Digging depth: 3,194 mm | Height: 2,400 mm (approx.)
Fuel: Diesel | CE marked: Yes | Tilt-Rotate: JCB original system
